Product details:
- Noticeable increase in performance of up to 25PS and 60NM by replacing with standard part
- Charge air volume 124% larger than standard
- Inflow surface 88% larger than standard
- 76mm / 3 inch inlet and outlet connection
- Efficient working range up to 3.5 bar boost pressure due to bar and plate network
- Suitable for all power / performance levels of the RS3 8Y
- Can be extended by air ducts all round (subject to surcharge)
- Lightweight version thanks to the latest technology - 16.9 KG
- 100% product control, pressure tested to 5 bar
Scope of delivery:
- HP Sport series intercooler
Product description:
The HPerformance Sport Series intercooler for the RS3 8Y is a massive upgrade over the stock intercooler. It offers a 124% larger charge air volume, 88% more flow surface and a ‘bar and plate’ network that is beyond performance and is rated at over 1100hp cooling capacity. As a result, the cooling capacity of the HPerformance RS3 8Y intercooler exceeds that of the standard intercooler many times over. The standard intercooler allows a measurement on the test bench in fourth gear and heats up by an average of 20°C from the start to the end of the test run. As early as the second measurement, the power output drops by more than 10 hp as a result of an intake air temperature that quickly exceeds 45°C and leads to a greasing or component protection mode in the control unit. As a result, the mixture becomes extremely rich, fuel consumption increases immensely and performance drops at the same time.
Not so with our intercooler!
On the standard vehicle, our intercooler already leads to an increase in performance of up to 25PS and 60NM (reproducible), even after several test runs, the power to be measured is constantly above 400PS and the temperature at the end of a run is still below that at the start.

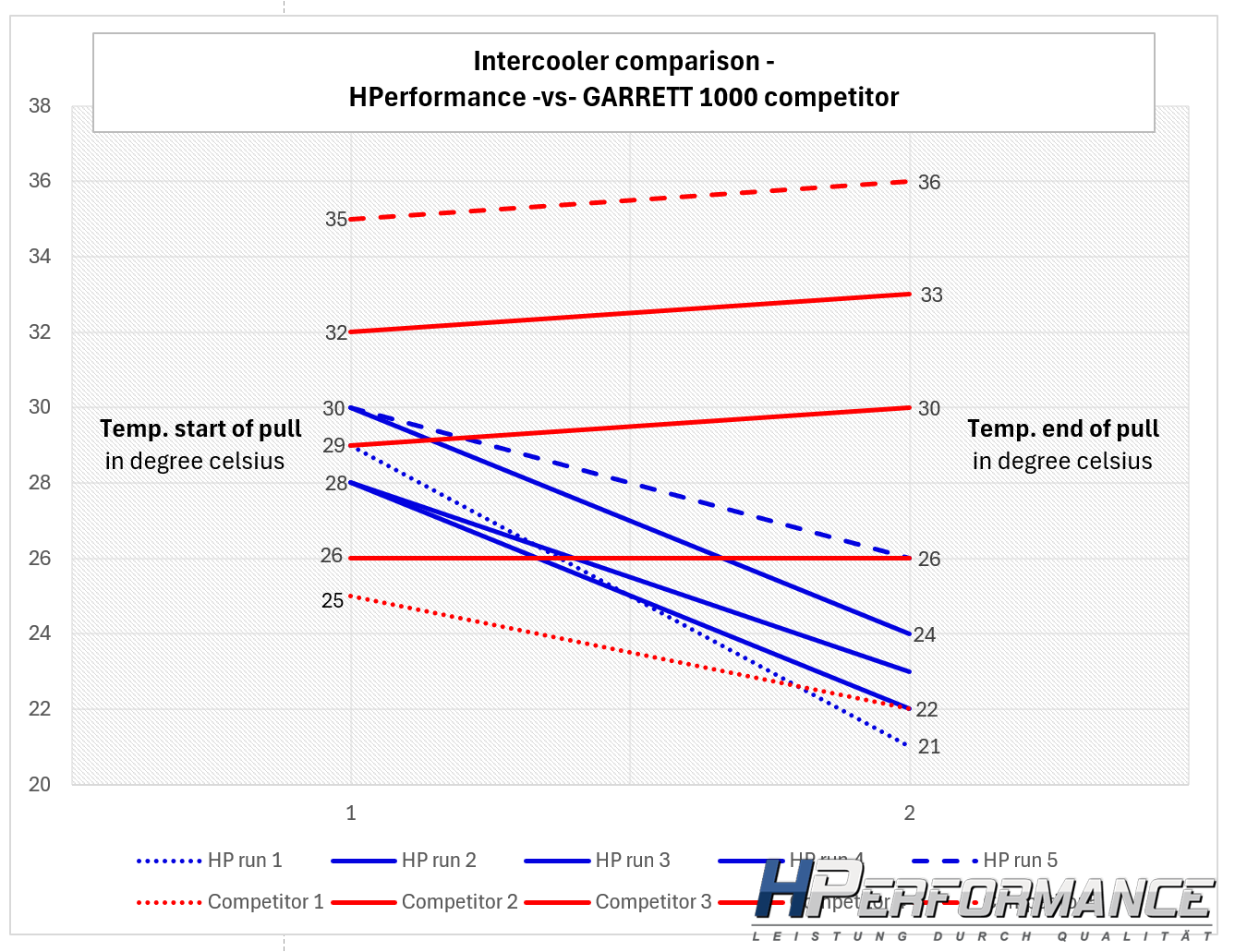

In order to better assess the enormous potential of the cooler, we compared it directly with a GARRETT 1000 intercooler. Our Sport Series intercooler was able to fulfil its potential. Even after 5 runs on the test bench, the output temperature (after acceleration) was still below the input temperature (before the measurement). We were able to demonstrate this effect even more clearly on the road. The measurement results can be seen in the pictures.
The intercooler is suitable for all performance levels and can be used both on the standard vehicle and on a vehicle with significantly increased performance.
Its total weight including baffle plate is only 16.9kg. It also offers the option of being combined with our 80mm / 3.14 inch charge pipe / throttle body unit. Efficiency can also be further improved with the optional air duct.
No parts need to be cut to install the radiator, but the plastic panelling and corresponding foam pads must be unscrewed.
Important:
Please always have work on vehicles carried out by trained specialists. Bumpers in modern vehicles have various sensors and controls that can lead to problems if handled incorrectly. We do not provide any guarantee / warranty / advice for improper installations.
Please note:
In accordance with our general terms and conditions, we would like to expressly point out once again that all items that are not expressly labelled with a TÜV / EC approval do not have a StVo approval. These articles must therefore be type-approved by the user before they can be used on public roads. Otherwise, these products must be used in racing.
