DBA - DBA52844SLVS - 5000 Series T3 Brake Rotor; Front

DBA52844SLVS - 5000 Series T3 Brake Rotor; Front

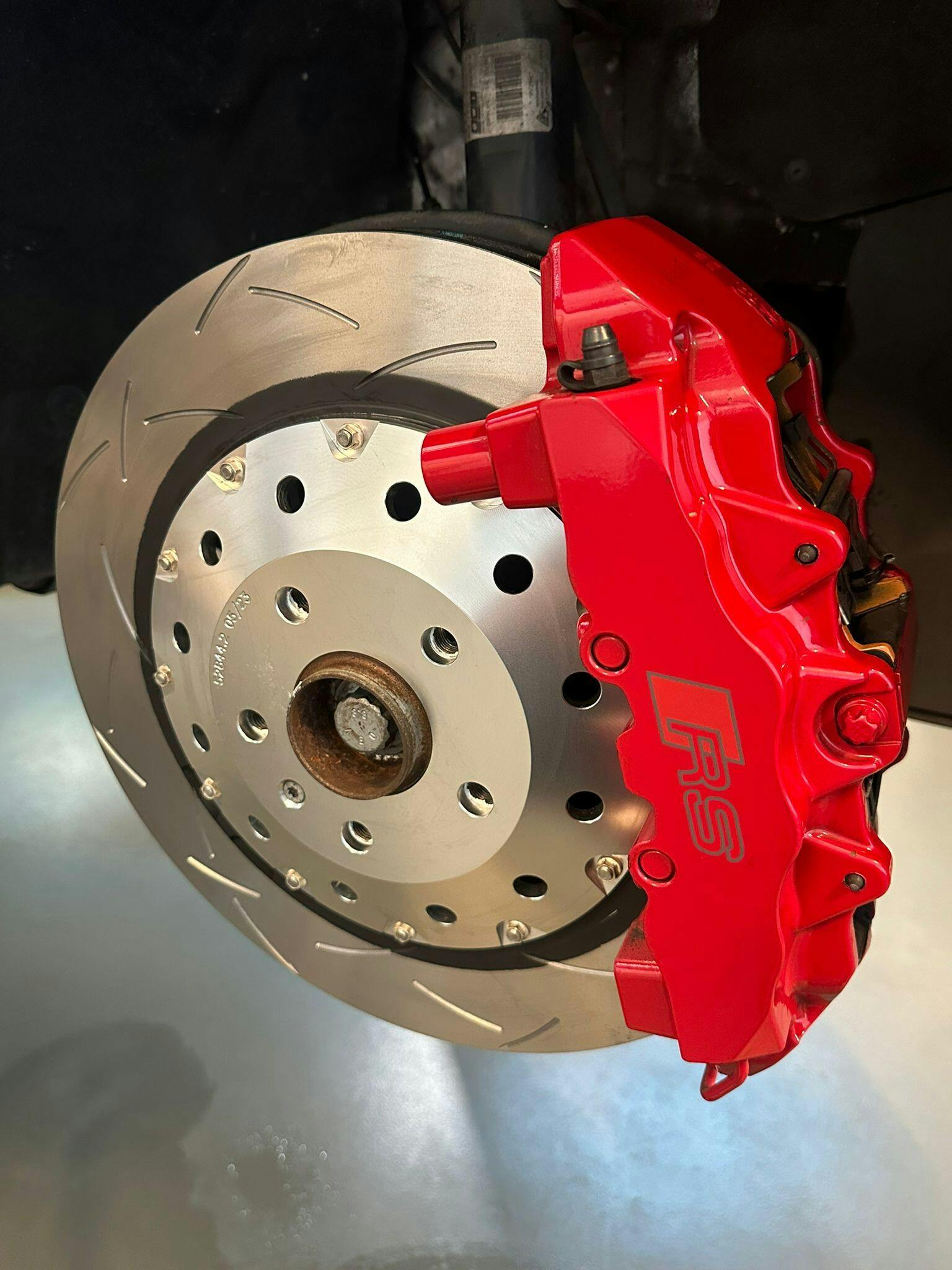

Level up your driving experience with DBA’s 5000 Series T3 Brake Rotors, featuring the revolutionary T3 bi-slotted design. Unleashing all the cutting-edge performance technology that DBA has to offer, these two-piece direct replacement brake rotors boast CBN machine-turned finishes and are crafted from high carbon alloys. With DBA’s Kangaroo Paw ventilation system, enjoy a remarkable 30% increase in surface area and a 20% improvement in cooling efficiency compared to conventional straight vane designs. What sets these rotors apart is the T3 bi-slotted design, ensuring a smoother, more responsive, and notably silent braking experience. Not stopping there, these brake rotors come equipped with Thermographic heat paint markings, transitioning in color at specific temperature thresholds. This provides a valuable visual cue for monitoring braking temperatures and assessing rotor fatigue, adding an extra layer of precision to your braking system. The incorporation of aerospace-grade aluminum hats isn't just about style; it reduces unsprung weight and facilitates uniform radial disc expansion within the cast iron rings. Moreover, it acts as a heat barrier, mitigating heat transfer from the disc to the hub through the aluminum hats. DBA's commitment to optimal performance is evident in the meticulous use of top-tier materials. High carbon cast iron rings are seamlessly integrated with Aluma-lite center hats/bells, securely fastened together using National Aerospace Standards (NAS) bolts and crimp nuts. Choose from complete assemblies for initial replacements (hats and friction rings bolted together) or opt for replacement hats and flat disc rotors. This flexibility allows drivers to reuse their DBA 5000 Series hats with DBA replacement rings, ensuring both convenience and cost-effectiveness. For drivers seeking the ultimate brake rotor upgrade on their high-performance cars, the 5000 T3 Series rotors stand as the go-to choice.

Specifications:

UPC/EAN Code 9316391420695
Manufacturer DBA
Bolt Circle Diameter mm 142
Bolt Hole Quantity 5,00
Disc Diameter (mm) 370
Disc Finish Bi-Slotted
Disc Height (mm) 59,70
Hub Hole Diameter (mm) 65,04
Disc Contruction 2-Piece Fixed
Disc Side Left/Right
Max Thickness 34
Min Thickness 32
Disc Vane Style Kangaroo Paw
Disc Type Vented
Spare Parts DBA52844.1S - 5000 Series T3 Replacement Ring; Front (DBA-DBA52844.1S)
Disc Quality Premium
Material Cast Iron
Package Contents 1x Brake Disc
Approvals ECE R90 Approved

Fitments:

• Audi / A3 (3rd Gen) 2012-2020 / Hatchback (8V) 2012-2020 / RS3 Quattro 2.5 Turbo 2015-2020
