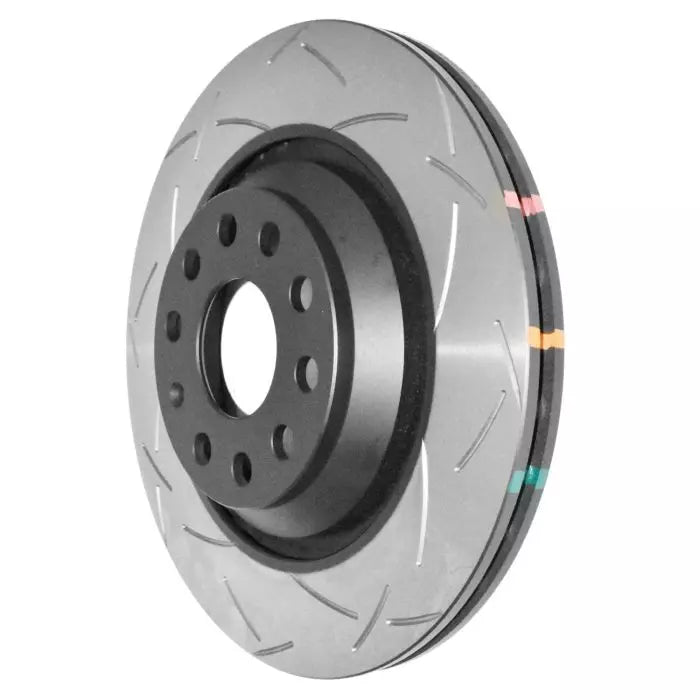

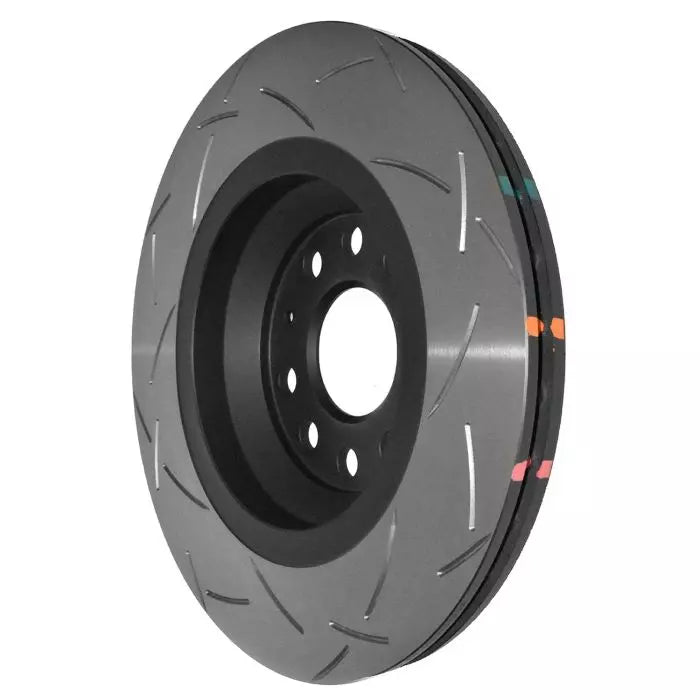

DBA42809S - 4000 Series T3 Brake Rotor; Rear

DBA42809S - 4000 Series T3 Brake Rotor; Rear

The 4000 Series T3 stands as the pinnacle in direct replacement single-piece performance brake rotors, encompassing all the metallurgy advantages of the 4000 Series with the addition of DBA's renowned T3 bi-directional slot design. Evolved from the T2 slot foundation, the T3 slot design introduces precise CNC machined tri-symmetrical slots, resulting in a notably quieter, more responsive, and smoother brake pedal feel. The T3 slot enhances the braking experience by increasing the number of exit points for brake pad friction dust and gases, ensuring a consistent and effective performance with every brake stop. The majority of DBA's 4000 Series Brake Rotors showcase the innovative Kangaroo Paw ventilation system. This system integrates a pattern of 144 diamond and teardrop-shaped pillars, delivering an outstanding 30% increase in surface area and a remarkable 20% enhancement in cooling efficiency when compared to conventional straight vane designs. Additionally, all 4000 Series Brake Rotors are equipped with Thermographic heat paint markings. These markings undergo colour changes at specific temperature thresholds, providing a valuable visual aid for monitoring braking temperatures and rotor fatigue. Ideal for high-performance applications, we highly recommend the 4000 Series T3 brake rotors for drivers seeking the utmost in braking excellence. Elevate your driving experience with the superior performance and innovation of the DBA 4000 Series T3 brake rotors.

Specifications:

UPC/EAN Code: 9316391398291
Manufacturer: DBA
Bolt Circle Diameter: 112mm
Bolt Hole Quantity: 5,00
Disc Diameter: 310mm
Disc Finish: Bi-Slotted
Disc Height: 48,50mm
Hub Hole Diameter: 65mm
Disc Contruction: 1-Piece
Disc Side: Left/Right
Max Thickness: 22
Min Thickness: 20
Disc Vane Style: Kangaroo Paw
Disc Type: Vented
Disc Quality: Premium
Material: Cast Iron
Package Contents: 1x Brake Disc
Approvals: ECE R90 Approved

Fitments:

Audi:

• Audi / A3 (2nd Gen) 2003-2013 / Hatchback (8P) 2003-2013 / A3 Quattro 3.2 2003-2009
• Audi / A3 (2nd Gen) 2003-2013 / Hatchback (8P) 2003-2013 / RS3 Quattro 2.5 Turbo 2011-2012
• Audi / A3 (2nd Gen) 2003-2013 / Hatchback (8P) 2003-2013 / S3 Quattro 2.0 Turbo 2006-2012
• Audi / A3 (3rd Gen) 2012-2020 / Convertible (8V) 2014-2020 / S3 Quattro Cabriolet 2.0 Turbo 2014-2020
• Audi / A3 (3rd Gen) 2012-2020 / Hatchback (8V) 2012-2020 / RS3 Quattro 2.5 Turbo 2015-2020
• Audi / A3 (3rd Gen) 2012-2020 / Hatchback (8V) 2012-2020 / S3 Quattro 2.0 Turbo 2012-2020
• Audi / A3 (3rd Gen) 2012-2020 / Sedan (8V) 2013-2020 / RS3 Quattro Limousine 2.5 Turbo 2017-2020
• Audi / A3 (3rd Gen) 2012-2020 / Sedan (8V) 2013-2020 / S3 Quattro Limousine 2.0 Turbo 2013-2020
• Audi / A3 (4th Gen) 2020-Present / Hatchbak (8Y) 2020-Present / RS3 2.0 Turbo 2021-Present
• Audi / A3 (4th Gen) 2020-Present / Sedan (8Y) 2020-Present / RS3 2.0 Turbo 2021-Present
• Audi / Q2 2016-Present / SUV (GA) 2016-Present / SQ2 2.0 Turbo 2019-Present
• Audi / Q3 (1st Gen) 2011-2018 / SUV (8U) 2011-2018 / RSQ3 Quattro 2.5 Turbo 2013-2015
• Audi / Q3 (1st Gen) 2011-2018 / SUV (8U) 2011-2018 / RSQ3 Quattro 2.5 Turbo 2015-2017
• Audi / Q3 (1st Gen) 2011-2018 / SUV (8U) 2011-2018 / RSQ3 Quattro Performance 2.5 Turbo 2016-2017
• Audi / TT (3rd Gen) 2014-2023 / Convertible (FV9/8S9) 2015-2023 / TT Roadster 2.0 Turbo 2015-2023
• Audi / TT (3rd Gen) 2014-2023 / Convertible (FV9/8S9) 2015-2023 / TT Quattro 2.0 Turbo 2015-2023
• Audi / TT (3rd Gen) 2014-2023 / Convertible (FV9/8S9) 2015-2023 / TTRS Quattro Roadster 2.5 Turbo 2016-2023
• Audi / TT (3rd Gen) 2014-2023 / Convertible (FV9/8S9) 2015-2023 / TTS Quattro Roadster 2.0 Turbo 2015-2023
• Audi / TT (3rd Gen) 2014-2023 / Coupe (FV3/8S3) 2014-2023 / TT 2.0 Turbo 2014-2023
• Audi / TT (3rd Gen) 2014-2023 / Coupe (FV3/8S3) 2014-2023 / TT 2.0 TD 2014-2019
• Audi / TT (3rd Gen) 2014-2023 / Coupe (FV3/8S3) 2014-2023 / TT Quattro 2.0 Turbo 2014-2023
• Audi / TT (3rd Gen) 2014-2023 / Coupe (FV3/8S3) 2014-2023 / TTRS Quattro 2.5 Turbo 2016-2023
• Audi / TT (3rd Gen) 2014-2023 / Coupe (FV3/8S3) 2014-2023 / TTS Quattro 2.0 Turbo 2014-2023



Cupra:

• Cupra / Ateca (1st Gen) 2018-Present / SUV (KH7/KHP) 2018-Present / Cupra Ateca 2.0 Turbo 2018-Present
• Cupra / Formentor (1st Gen) 2020-Present / SUV 2020-Present / Cupra Formentor 1.5 Turbo 2020-Present
• Cupra / Formentor (1st Gen) 2020-Present / SUV 2020-Present / Cupra Formentor 2.0 TD 2021-Present
• Cupra / Formentor (1st Gen) 2020-Present / SUV 2020-Present / Cupra Formentor 2.0 Turbo 2020-Present
• Cupra / Formentor (1st Gen) 2020-Present / SUV 2020-Present / Cupra Formentor Hybrid 1.4 Turbo 2021-Present
• Cupra / Formentor (1st Gen) 2020-Present / SUV 2020-Present / Cupra Formentor VZ5 2.5 Turbo 2021-Present
• Cupra / Leon (1st Gen) 2020-Present / Hatchback (KL) 2020-Present / Cupra Leon 2.0 Turbo 2020-Present
• Cupra / Leon (1st Gen) 2020-Present / Wagon (KL) 2020-Present / Cupra Leon ST 2.0 Turbo 2020-Present
• Cupra / Leon (1st Gen) 2020-Present / Hatchback (KL) 2020-Present / Cupra Leon Hybrid 1.4 Turbo 2020-Present
• Cupra / Leon (1st Gen) 2020-Present / Wagon (KL) 2020-Present / Cupra Leon ST Hybrid 1.4 Turbo 2020-Present



Seat:

• Seat / Leon (3rd Gen) 2012-2020 / Hatchback (5F) 2012-2020 / Leon Cupra 2.0 Turbo 2014-2017
• Seat / Leon (3rd Gen) 2012-2020 / Hatchback (5F) 2012-2020 / Leon Cupra 2.0 Turbo 2017-2020
• Seat / Leon (3rd Gen) 2012-2020 / Hatchback (5F) 2012-2020 / Leon Cupra R 2.0 Turbo 2017-2020
• Seat / Leon (3rd Gen) 2012-2020 / Wagon (5F) 2013-2020 / Leon Cupra ST 2.0 Turbo 2017-2020
• Seat / Leon (3rd Gen) 2012-2020 / Wagon (5F) 2013-2020 / Leon Cupra ST 2.0 Turbo 2014-2017
• Seat / Leon (3rd Gen) 2012-2020 / Wagon (5F) 2013-2020 / Leon ST 2.0 TD (4Drive) 2014-2020

Skoda:

• Skoda / Kodiaq 2016-Present / SUV (NS7) 2016-Present / Kodiaq RS 2.0 Twin TD 2018-2021
• Skoda / Kodiaq 2016-Present / SUV (NS7) 2016-Present / Kodiaq RS 2.0 Turbo 2021-Present
• Skoda / Octavia (3rd Gen) 2012-2020 / Hatchback (5E3) 2012-2020 / Octavia RS 2.0 Turbo 2017-2020
• Skoda / Octavia (3rd Gen) 2012-2020 / Wagon (5E5) 2012-2020 / Octavia RS Combi 2.0 Turbo 2017-2020
• Skoda / Octavia (4th Gen) 2020-Present / Hatchback (NX3/NN3) 2020-Present / Octavia RS 2.0 Turbo 2020-Present
• Skoda / Octavia (4th Gen) 2020-Present / Wagon (NX5) 2020-Present / Octavia Combi RS 2.0 Turbo 2020-Present
• Skoda / Superb (2nd Gen) 2008-2015 / Sedan (B6) (3T4) 2008-2015 / Superb 1.8 Turbo (4WD) 2008-2015
• Skoda / Superb (2nd Gen) 2008-2015 / Sedan (B6) (3T4) 2008-2015 / Superb 2.0 TD (4WD) (140HP/103KW) 2010-2015
• Skoda / Superb (2nd Gen) 2008-2015 / Sedan (B6) (3T4) 2008-2015 / Superb 2.0 TD (4WD) (170HP/125KW) 2008-2015
• Skoda / Superb (2nd Gen) 2008-2015 / Sedan (B6) (3T4) 2008-2015 / Superb 3.6 2008-2015
• Skoda / Superb (2nd Gen) 2008-2015 / Wagon (B6) (3T5) 2009-2015 / Superb Combi 1.8 Turbo (4WD) 2009-2015
• Skoda / Superb (2nd Gen) 2008-2015 / Wagon (B6) (3T5) 2009-2015 / Superb Combi 2.0 TD (4WD) (140HP/103KW) 2010-2015
• Skoda / Superb (2nd Gen) 2008-2015 / Wagon (B6) (3T5) 2009-2015 / Superb Combi 2.0 TD (4WD) (170HP/125KW) 2009-2015
• Skoda / Superb (2nd Gen) 2008-2015 / Wagon (B6) (3T5) 2009-2015 / Superb Combi 3.6 2009-2015
• Skoda / Octavia (3rd Gen) 2012-2020 / Wagon (5E5) 2012-2020 / Octavia RS Combi 2.0 Turbo 2013-2017
• Skoda / Octavia (3rd Gen) 2012-2020 / Hatchback (5E3) 2012-2020 / Octavia RS 2.0 Turbo 2013-2017


Volkswagen:

• Volkswagen / Arteon 2017-Present / Sedan (3H7) 2017-Present / Arteon R 2.0 Turbo 2020-Present
• Volkswagen / Arteon 2017-Present / Wagon (3H9) 2020-Present / Arteon Shooting Brake R 2.0 Turbo 2020-Present
• Volkswagen / CC (2nd Gen) 2012-2017 / Sedan (358) 2012-2017 / CC 2.0 Turbo 2012-2017
• Volkswagen / CC (2nd Gen) 2012-2017 / Sedan (358) 2012-2017 / CC 3.6 2012-2017
• Volkswagen / Eos 2006-2015 / Convertible (1F7/1F8) 2006-2015 / Eos 3.2 2006-2009
• Volkswagen / Eos 2006-2015 / Convertible (1F7/1F8) 2006-2015 / Eos 3.6 2009-2011
• Volkswagen / Golf (5th Gen) 2003-2009 / Hatchback (1K1) 2003-2008 / Golf R32 3.2 2005-2008
• Volkswagen / Golf (6th Gen) 2008-2016 / Convertible (517) 2011-2016 / Golf Cabrio 2.0 Turbo (220HP/162KW) 2013-2016
• Volkswagen / Golf (6th Gen) 2008-2016 / Convertible (517) 2011-2016 / Golf R Cabrio 2.0 Turbo (265HP/195KW) 2013-2016
• Volkswagen / Golf (6th Gen) 2008-2016 / Hatchback (5K1) 2008-2012 / Golf 1.4 Turbo (160HP/118KW) 2008-2012
• Volkswagen / Golf (6th Gen) 2008-2016 / Hatchback (5K1) 2008-2012 / Golf GTD 2.0 TD (4Motion) 2009-2012
• Volkswagen / Golf (6th Gen) 2008-2016 / Hatchback (5K1) 2008-2012 / Golf GTD 2.0 TD 2009-2012
• Volkswagen / Golf (6th Gen) 2008-2016 / Hatchback (5K1) 2008-2012 / Golf R 2.0 Turbo 2009-2012
• Volkswagen / Golf (6th Gen) 2008-2016 / Wagon (AJ5) 2009-2013 / Golf Variant 1.4 Turbo (160HP/118KW) 2009-2013
• Volkswagen / Golf (7th Gen) 2012-2020 / Hatchback (5G) 2012-2020 / Golf GTD 2.0 TD 2013-2020
• Volkswagen / Golf (7th Gen) 2012-2020 / Hatchback (5G) 2012-2020 / Golf GTi 2.0 Turbo 2013-2017
• Volkswagen / Golf (7th Gen) 2012-2020 / Hatchback (5G) 2012-2020 / Golf GTi 2.0 Turbo 2017-2020
• Volkswagen / Golf (7th Gen) 2012-2020 / Hatchback (5G) 2012-2020 / Golf GTi Clubsport 2.0 Turbo 2016-2019
• Volkswagen / Golf (7th Gen) 2012-2020 / Hatchback (5G) 2012-2020 / Golf GTi Clubsport S 2.0 Turbo 2016-2019
• Volkswagen / Golf (7th Gen) 2012-2020 / Hatchback (5G) 2012-2020 / Golf R 2.0 Turbo R 2013-2020
• Volkswagen / Golf (7th Gen) 2012-2020 / Wagon (BA5) 2015-2020 / Golf Alltrack 2.0 TD 2015-2020
• Volkswagen / Golf (7th Gen) 2012-2020 / Wagon (BA5/BV5) 2013-2020 / Golf R Variant 2.0 Turbo 2013-2020
• Volkswagen / Golf (7th Gen) 2012-2020 / Wagon (BA5/BV5) 2013-2020 / Golf Variant 2.0 TD 2013-2020
• Volkswagen / Golf (7th Gen) 2012-2020 / Wagon (BA5/BV5) 2013-2020 / Golf GTD Variant 2.0 TD 2015-2020
• Volkswagen / Golf (8th Gen) 2019-Present / Hatchback (CD1) 2019-Present / Golf 1.4 Turbo 2020-Present
• Volkswagen / Golf (8th Gen) 2019-Present / Hatchback (CD1) 2019-Present / Golf GTI 2.0 Turbo 2020-Present
• Volkswagen / Golf (8th Gen) 2019-Present / Hatchback (CD1) 2019-Present / Golf GTi Clubsport 2.0 Turbo 2020-Present
• Volkswagen / Golf (8th Gen) 2019-Present / Hatchback (CD1) 2019-Present / Golf R 2.0 Turbo 2020-Present
• Volkswagen / Passat (6th Gen) 2005-2010 / Sedan (B6) 2005-2010 / Passat 2.0 Turbo 2005-2010
• Volkswagen / Passat (6th Gen) 2005-2010 / Sedan (B6) 2005-2010 / Passat 3.2 2005-2010
• Volkswagen / Passat (6th Gen) 2005-2010 / Sedan (B6) 2005-2010 / Passat R36 3.6 2008-2010
• Volkswagen / Passat (6th Gen) 2005-2010 / Wagon (B6) 2005-2010 / Passat R36 Variant 3.6 2008-2010
• Volkswagen / Passat (6th Gen) 2005-2010 / Wagon (B6) 2005-2010 / Passat Variant 2.0 Turbo 2005-2010
• Volkswagen / Passat (6th Gen) 2005-2010 / Wagon (B6) 2005-2010 / Passat Variant 3.2 2005-2010
• Volkswagen / Passat (7th Gen) 2010-2014 / Sedan (B7) 2010-2014 / Passat 2.0 Turbo 2011-2014
• Volkswagen / Passat (7th Gen) 2010-2014 / Sedan (B7) 2010-2014 / Passat VR6 3.6 (280HP/206KW) 2010-2012
• Volkswagen / Passat (7th Gen) 2010-2014 / Sedan (B7) 2010-2014 / Passat VR6 3.6 (300HP/220KW) 2012-2014
• Volkswagen / Passat (7th Gen) 2010-2014 / Wagon (Alltrack) (B7) 2012-2014 / Passat Alltrack 1.8 Turbo 2012-2014
• Volkswagen / Passat (7th Gen) 2010-2014 / Wagon (Alltrack) (B7) 2012-2014 / Passat Alltrack 2.0 TD 2012-2014
• Volkswagen / Passat (7th Gen) 2010-2014 / Wagon (Alltrack) (B7) 2012-2014 / Passat Alltrack 2.0 Turbo 2012-2014
• Volkswagen / Passat (7th Gen) 2010-2014 / Wagon (Variant) (B7) 2010-2014 / Passat Variant 2.0 Turbo 2011-2014
• Volkswagen / Passat (7th Gen) 2010-2014 / Wagon (Variant) (B7) 2010-2014 / Passat VR6 Variant 3.6 (280HP/206KW) 2010-2012
• Volkswagen / Passat (7th Gen) 2010-2014 / Wagon (Variant) (B7) 2010-2014 / Passat VR6 Variant 3.6 (300HP/220KW) 2012-2014
• Volkswagen / Passat (8th Gen) 2014-Present / Sedan (B8) 2014-Present / Passat 2.0 Turbo 2015-Present
• Volkswagen / Passat (8th Gen) 2014-Present / Sedan (B8) 2014-Present / Passat 2.0 Twin TD 2014-Present
• Volkswagen / Passat (8th Gen) 2014-Present / Wagon (B8) 2014-Present / Passat Variant 2.0 Turbo 2015-Present
• Volkswagen / Passat (8th Gen) 2014-Present / Wagon (B8) 2014-Present / Passat Variant 2.0 Twin TD 2014-Present
• Volkswagen / Passat CC (1st Gen) 2008-2012 / Sedan (357) 2008-2012 / Passat CC 2.0 Turbo 2008-2012
• Volkswagen / Passat CC (1st Gen) 2008-2012 / Sedan (357) 2008-2012 / Passat CC 3.6 2008-2012
• Volkswagen / Scirocco (3rd Gen) 2008-2017 / Coupe (13) 2008-2017 / Scirocco R 2.0 Turbo 2009-2017
• Volkswagen / Tiguan (2nd Gen) 2016-Present / SUV (AD1) 2016-Present / Tiguan 1.4 Turbo 2016-2018
• Volkswagen / Tiguan (2nd Gen) 2016-Present / SUV (AD1) 2016-Present / Tiguan 2.0 TD 2016-Present
• Volkswagen / Tiguan (2nd Gen) 2016-Present / SUV (AD1) 2016-Present / Tiguan 2.0 Turbo 2016-Present
• Volkswagen / Golf (8th Gen) 2019-Present / Hatchback (CD1) 2019-Present / Golf GTE 1.4 Turbo 2020-Present
• Volkswagen / Tiguan (2nd Gen) 2016-Present / SUV (AD1) 2016-Present / Tiguan 2.0 R Turbo 2020-2023
